Professionale 6-20 kg pieghevole Agricoltura UAV drone a spruzzo pesticidi, giardino spruzzatore uav drone con il GPS automaticamente a spruzzo

FOB Prezzo di riferimento:Ottieni l'ultimo prezzo
  • 1 - 4 insiemi
    6.800,00 USD
  • 5 - 9 insiemi
    6.500,00 USD
  • 10 - 19 insiemi
    6.300,00 USD
  • >=20 insiemi
    6.200,00 USD
rapporto di Attività Sospette
Panoramica
Dettagli in breve
Tipo:
Girodine
Circostanza:
Nuovo
Anno sviluppato:
2017
Punto d'origine:
Shandong, China (Mainland)
Numero del Modello:
JT Spruzzatore 10-608
Articolo:
10 L agricolo drone elicottero di pesticidi
Fonte di alimentazione:
Li-Po battery
Ugello:
4 ad alta pressione Ugelli standard
Capacità serbatoio:
10 L
Di controllo:
Controler a distanza Futaba
A spruzzo larghezza:
4-6 m
Certificazione:
CE, FCC, ROHS
Spray efficienza:
1500 ~ 2500sq. m/min
Velocità di volo:
0-12 m/s
Spray velocità:
0 ~ 8 m/s
Capacità di fornitura
Capacità di fornitura:
100 Set/Sets per Month high efficiency 10kg drone used for farming with gps crop
Confezionamento & Consegna
Pacchetto
Una sola unità drone con tutte le opzioni sarà messo in una cassa da imballaggio di Alluminio;
Pesticidi Con Formula Chimica
Orificio
Qingdao
Tempi di consegna: :
7-10 days after 100% payment
Prouct discription

JOYANCE SPRAYER DRONES FIVE MODELS SPECIFICATIONS-  STANDARD EQUIPMENT DRONES

MODEL
6-606
10-608
15-608
10-606
15-606
Pesticide tank
6L
10L
15L
10L
15L
Structure
6 axles 6 rotors
6 axles 8 rotors
6 axles 8 rotors
6axles 6 rotors
6 axles 8 rotors
Net weight
7.5KG
11KG
15KG
10.5KG
13.5KG
Max take-of weight
18KG
28KG
40KG
25KG
35KG
Spraying efficiency
2-3 acres per hour
5-6acres per hour
6-7acres per hour
3-4acres per hour
5-6acres per hour
Flying time
10-15min
10-15min
10-15min
10-15min
10-15min
Flying height
1~3m above the top of crop
1~3m above the top of crop
1~3m above the top of crop
1~3m above the top of crop
1~3m above the top of crop
Flying radium
1000m
1000m
1000m
1000m
1000m
Nozzles
4 high pressure nozzles
4  high pressure nozzles
6  high pressure nozzle
2 pcs electrostatic centrifugal nozzles
2 pcs electrostatic centrifugal nozzles
Spraying width
3-4m
4-6m
5-7m
3.5-5.5m
4-5m
Spreading size
W1.2mxL1.2mxH0.3m
W1.8mxL1.3mxH0.4m
W2.65mxL1.55mxH0.35m
W1.3mxL1.3mxH0.4m
W1.55mxL1.55mxH0.35m
Fold size
W0.5mxL0.4mxH0.5m
W0.7mxL0.5mxH0.5m
W0.95mxL0.7mxH0.55m
W0.5mxL0.5mxH0.5m
W0.7mxL0.7mxH0.55m
Battery
6S 12000mAh 1pcs
6S 16000mAh 2pcs
6S 16000mAh 2pcs
6S 12000mAh 2pcs
6S 12000mAh 2pcs
Charger
1-way charger
4-way charger
4-way charger
4-way charger
4-way charger
Remote controller
FUTABA T8FG
FUTABA T8FG
FUTABA T8FG
FUTABA T8FG
FUTABA T8FG
Packing size
63*63*63cm
74*74*79cm
74*79*79cm
74*74*79cm
74*74*79cm

OPTIONAL PARTS TO CHOOSE


FPV
image transimission +camera+ 7" Screen + Tripod +Battery + Sunshade
OSD
Show flight data on the screen
DCU
Control spraying flow accroding to speed
TERRAIN FOLLOWING RADAR
Control the height automatically
Ground control station
Autonomous flying

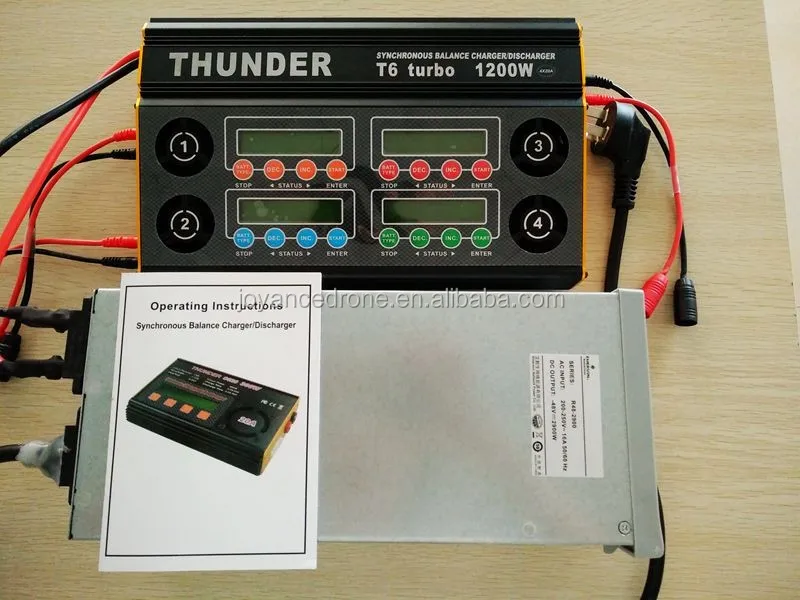

battery charger
four-way charger
bettery
extra 16000mah batteries

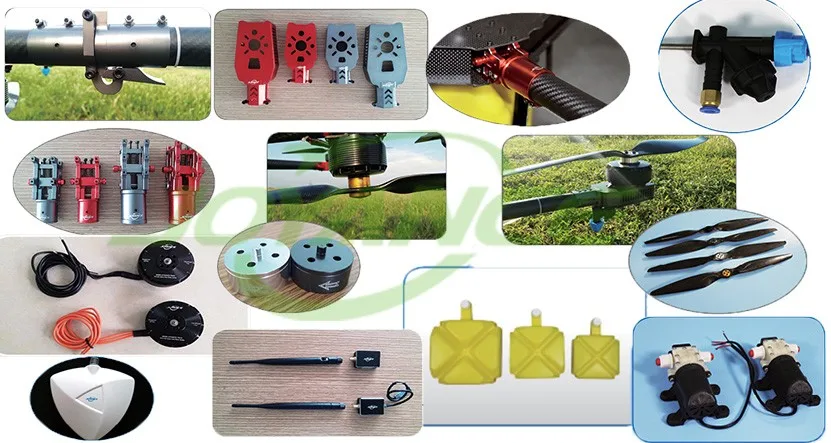

Key parts

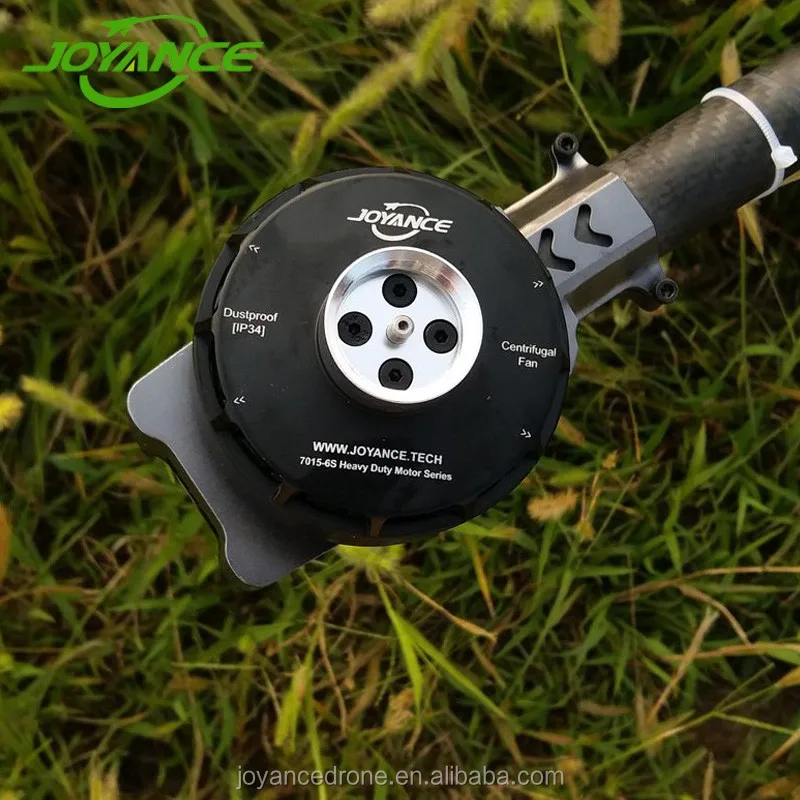

Motors

Heavy duty power motors, with centrifugal fan to cool down the temperature, can realize continuous working,

Working life 1500 hours.

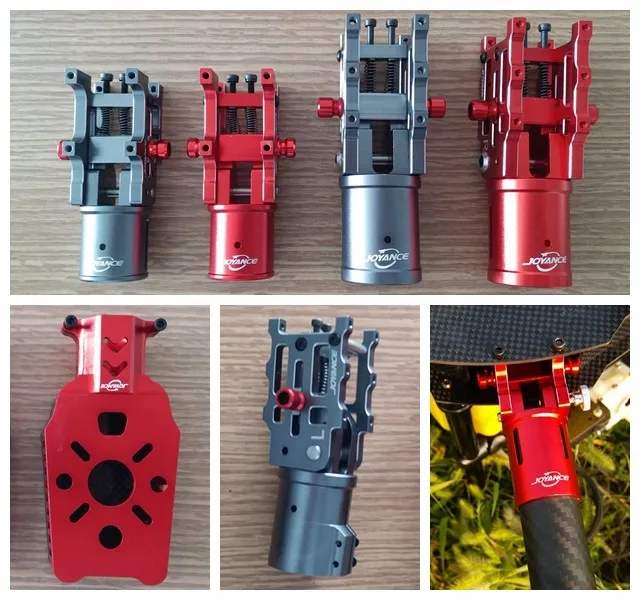

FOLDING JOINT
Made with aviation aluminum, easy to fold,
light and durable.

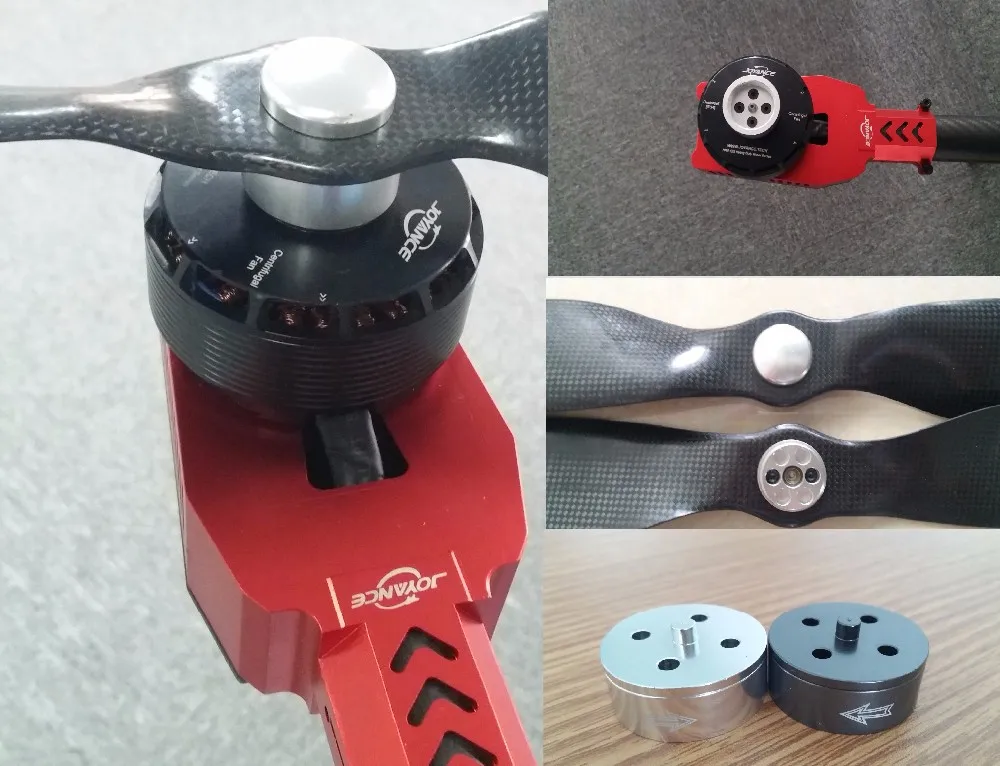

Quick release parts

Easy to aseemble the carbon propellers , no need any bolts.

Optionals

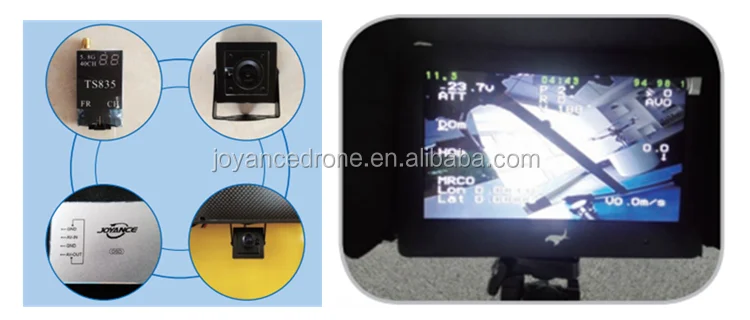

FPV : Fixed Camera + Image Transmission+7" Screen + Tripod + Battery + Sunshade

Function: can show the flight image on the screen

OSD: show flight data on the screen

DCU: Automatically control the spray flow accroding to the flying speed.

GROUND CONTROL STATION- AUTONOMOUS FLYING DRONE

Mark A B C D, and define the flying height, spraying width, flying speed and delay time, the Ground Station Software will create flying routes  automatically,and you can save this as one project, so that you can use it again when you need to spray this field once more.  Ordinary drones also have autonomous flight with waypoints, but they are quite different with our intelligent autonomous flight!

Continuous Spraying:


In order to work continuously, you need extra batteries and extra adapters+chargers.
10 units of extra batteries and 2 units of extra adapters+chargers are recommended.


Terrain Following

With terrain following radar can automatically control the height above the crops, spraying effect not influenced by the terrain.

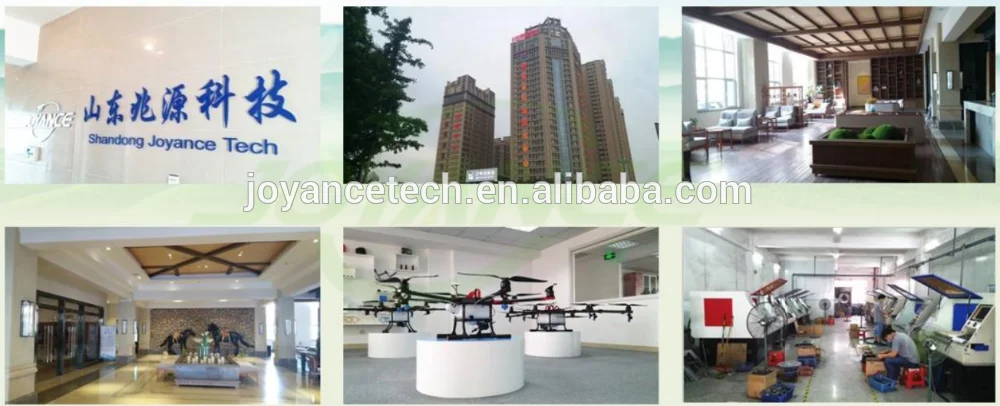

WHY CHOOSE US

Shandong Joyance Intelligence Technology Co., Ltd. is a high-tech enterprise,has spent four years in researching and developing agricultural sprayer drones and UAV application solutions. We have a professional R&D team and registered capital of 60 million RMB, with a production capacity of 100 units of agriculture drones per month.

Our products have passed CE, FCC, RoHS test and acquired 12 patents. With characteristics of fully independence, high intelligence, good security, high reliability, simple operation and easy to use, our products have been exported to Latin America, Europe, the Middle East, Southeast Asia, about 33 countries and regions.

Our mission is to make the drones that farmers desire.

SUPPORT

1.  On-line technical support

2.  Provide operation manual & video, and free training in our factory

3.  All the spare parts are easy to be replaced by customers themselves.

4.  ALL update software share free

5.  Special discounts price for distributors

Customers

Customer feedbacks

 Joyance Drones have been exported to many countries in the world, include France, Ireland, Japan, Sri Lanka, Australia, Indonesia, South Africa, USA, Panama, Salvador, Colombia and Brazil and etc. They apply our drones spraying crops such as rice, wheat, corn, soybean, spraying fruits such as banana, apple, orange, sugarcane, and other plants such as tea, cotton, cocoa, palm, tobacco. We are still looking for dealers in other countries, it's a good market opportunity now, we would like to do business with you with win-win. If you are interested, please don't hesitate to contact us for more information.

Packing

Packaging Details

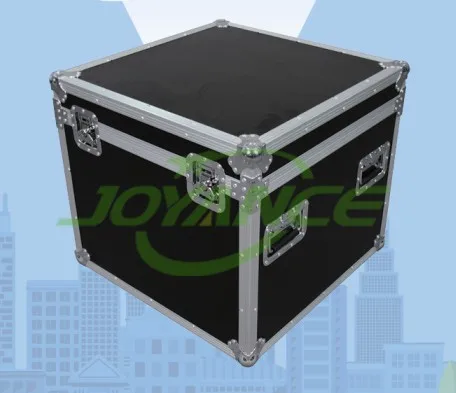

The normal package is Aluminum Case
easy to transport and not easy to damage the sprayer drone

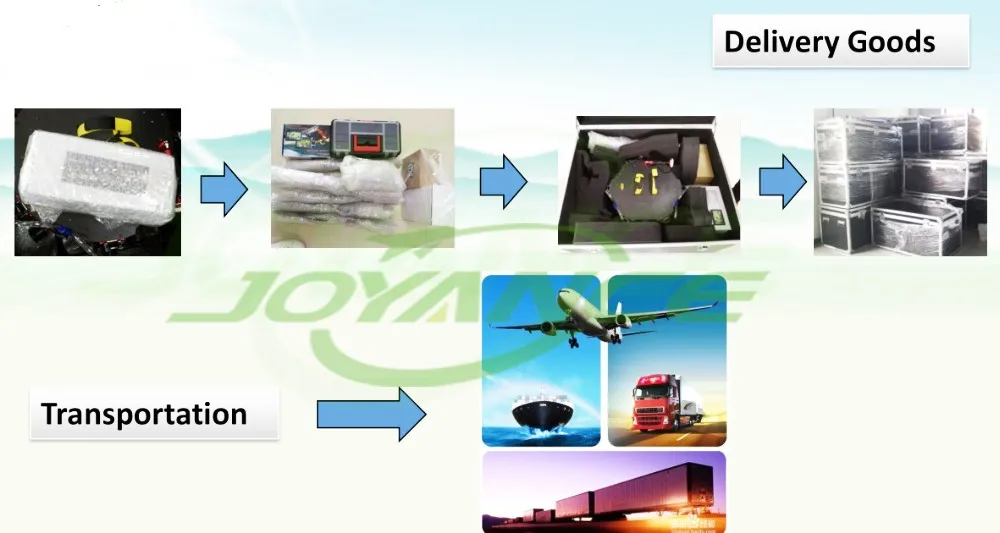

DELIVERY
 Air, sea and land transportation are all available for agricultural sprayer drone.
PAYMENT
50% TT Before order, 50% balance before shipment
DELIVERY TIME
7-15 days after receiveing 100% payment.
FAQ

Q. Are you trading company or factory?
A. We are a professional R&D and production of agricultural drones factory.

Q. About transportation?
A. a) by sea (to your nearest sea port)
     b) by air transport (to your nearest airport)
     c) by air express (to your specific address)


Q. About delievery time?
A. Generally it's 2-3 days if the goods are in stock, or 7-15 days if the goods are not in stock. It's according to order quantity.

Q. How can I get discount?
A. We have different discount items for different order quantities, please contact with me for more details.

Any questions please contact us directly
