Idraulico della pompa di prova utilizzando, portatile di pressione idraulica banco di prova, misuratore di flusso idraulico kit per il test

20.000,00 USD / Unità | 1 Unità (Ordine minimo)
Uso:
Auto Testing Machine
20.000,00 USD
- +
disponibile
Universal Testing Machine
20.000,00 USD
- +
disponibile
20.000,00 USD
- +
disponibile
0pezziselezionati, US $in totale
Visualizza dettagli
Spese di spedizione
Conferma la quantità delle merci.
Tempi di consegna:
15 giorni dopo la ricezione del pagamento
Contatta il fornitore
rapporto di Attività Sospette
Panoramica
Dettagli in breve
Punto d'origine:
Shandong, China
Marca:
HIGHLAND
Numero del Modello:
YST300/500
Potere:
Idraulico
Nome del prodotto:
Cilindro idraulico banco di prova, banco di prova idraulica, di prova idraulica
Potenza totale:
75-350KW
Gamma di pressione di prova:
0 ~ 42MPa
Gamma di velocità di flusso:
0 ~ 500L/min
Gamma di velocità di rotazione:
0 ~ 3000r/min
Applicazione:
Test pompa idraulica, motore, cilindro e valvole
Servizio:
All'estero
Di garanzia:
Un anno di
Gli standard nazionali:
GB/T8104, GB/T8105, GB/T8106, GB/T7936, GB/T 15622
Standard di settore:
JB/T8728, JB/T7039, JB/T7042, JB/T7044

Confezionamento & Consegna

Unità di vendita:
Articolo singolo
Dimensioni della confezione singola:
420X220X220 cm
Peso loro per unità:
5000.0 kg
Tipo di confezione:
Hydraulic test pump using, portable hydraulic pressure test bench, hydraulic flow meter test kit according to the customers
Esempio di immagine:
package-img
package-img
Tempi di consegna: :
Quantità(Unità) 1 - 2 >2
Tempo previsto (giorni) 15 Da negoziare
Descrizione del video
Product Description

Hydraulic test pump using, portable hydraulic pressure test bench, hydraulic flow meter test kit

YST Series Hydraulic testing table are used for checking and proofreading the products that include hydraulic pump,hydraulic motor , hydraulic cylinder and valve. It also can conduct hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.

Main Model

1) YST-300 Hydraulic Motor Test Tench

2) YST-300 Digit Hydraulic Test Bench

3) YST-380 Hydraulic Pump Test Tench

4) YST-380 Adjustable Hydraulic Comprehensive Test Bench

5) YST-380 Digit Hydraulic Comprehensive Test Bench

6) YST-500 Hydraulic Comprehensive Test Bench

Our hydraulic test bench is the custom-made machine.Our engineer will make the best solution for you according to your requirements.

Application

1 .Functional requirements : it is used for testing hydraulic pumps,high speed motors,low speed motors,hydraulic cylinders and all kinds of valves
2 .Pumps and Motors Model Range: (according to part A's request)

3 .Test Item:
1). Displacement checking testing : No-load Pressure,determination of displacement.
2). Volumetric Efficiency/Total Efficiency Testing: Under the rated conditions,test volumetric efficiency and total efficiency.
3). Overload Testing: Max.displacement,Nominal Speed,125% of the rated pressure, or max. pressure operation more than 1 minute
4). External Leakage: in the above testing, Check the leakage of sealing parts.

Our hydraulic test bench are customized machine. Please tell me your requirements. Our engineer will make the best solution for you.

National standards
GB/T8104,GB/T8105,GB/T8106,GB/T7936,GB/T 15622
Industry standards
JB/T8728,JB/T7039,JB/T7042,JB/T7044
Total power
75KW,90KW,110KW,132KW,160KW,315kw,350kw
Range of test pressure
0~42MPa
Range of flow rate
0~500L/min
Range of rotational speed
0~3000r/min
Composition
Dynamic system, hydraulic control system, hydraulic oil filter temperature control system and electric control system, data acquisition test system
Applicable area
Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.
Detailed Images

Function

Hydraulic components test bench applicable to all kinds of general hydraulic components of the performance test. It can satisfy different user's testing requirements.

Five Varieties

Hydraulic components test bench is divided into five varieties: hydraulic valve test rig, hydraulic pump test bench and hydraulic motor function test rig, hydraulic cylinder test rig and comprehensive test bench.

Main Features

Motive Power: Ordinary electromotor; Frequency conversion electromotor; Hydraulic electromotor; diesel engine drive; diesel engine hydraulic drive


Pressure: 35Mpa; 42Mpa

Power: 7 5KW; 90 KW; 110 KW; 160 KW
Load Location: Locale; Long distance

Provide oil: oblige; absorb

Main Features

how location: Locale; Computer

Working medium: hydraulic oil
Oil tank cubage: 2000L; 3400L
Oil filtrate: 2 degree filter; 4degree filter; filtrate equipment
Cooling way: wind cooler; water cooler
Accessories: Connect shaft (2 Pc); outline drawing of shaft (1 pc)
Increasing function: close pump test; torsional moment power test

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

Jinan Highland Hydraulic Co.,Ltd

Highland Hydraulic Pump Co., Ltd is a professional and high-tech enterprise. The company boasts solid technical strength, scientific management, advanced production testing equipment. Our main products are hydraulic pump, hydraulic motor, hydraulic tester and test bench.

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Exhibition

Bauma

Customer Photo

Favorable Comment

We are one of the best hydraulic pump, motor, tester and test bench manufacuturer in China. Our hydraulic products have exported to Russia, Korea, Vietnam, Singapore, Malaysia, Indonesia, Slovenija, Poland, Canada, Brazil and other countries.

Exhibition

Every year we take part in the Bauma Exhibition in Shanghai

Training

We also have the hydraulic pump and motor repair factory. We can provide the most professional training in our factory. And we can provide the dormitory for free

Products Show

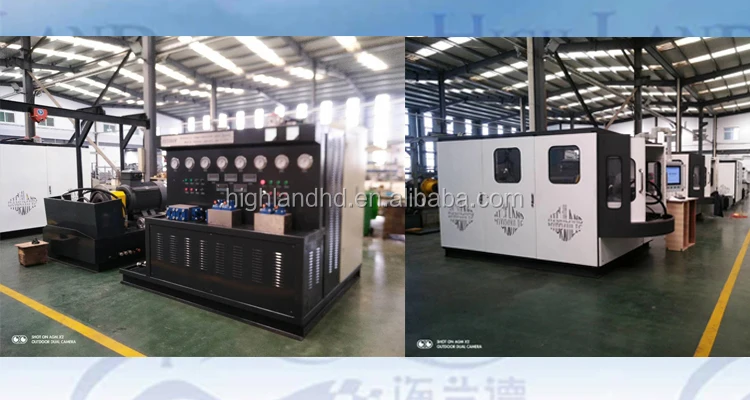

More and more factories copy our hydraulic test bench. So from 2017 year we developed a new model test stand. The new model is more secure, space efficient and more private . It depends on your preference.

Our other products are hydraulic tester, hydraulic pump and motor

Contact Us
Jinan Highland Hydraulic Pump Co.,Ltd
Tel:
0086 13065038630
Skype:
hld88660597
Wechat:
0086 13065038630
WhatsApp:
0086 13969074307
QQ:
1921901916
