Prodotto caldo l'industria chiller raffreddato ad acqua refrigeratore e raffreddato ad aria chiller

FOB Prezzo di riferimento:Ottieni l'ultimo prezzo
1.500,00 USD - 2.000,00 USD / Insieme | 1 Insieme/insiemi (Ordine minimo)
Numero del Modello:
Capacità di Raffreddamento (kw):
Tempi di consegna::
Quantità(insiemi) 1 - 3 >3
Tempo previsto (giorni) 10 Negoziabile
rapporto di Attività Sospette
Panoramica
Dettagli in breve
Potere (W):
11324 W
Dimensione (L*W*H):
856*530*1010 millimetri
Peso:
125 KG
Garanzia:
1 anno
Servizio After-sales fornito:
Video di supporto tecnico, Supporto on-line
Circostanza:
Nuovo
Tipo:
Raffreddato ad acqua
Punto d'origine:
Guangdong, China
Marca:
DingYuan
Tensione:
220 v-460 v/50-60 hz/3 phase
Certificazione:
CE
Nome del prodotto:
Raffreddato Ad acqua Refrigeratore
Applicazione:
Soluzioni Di Raffreddamento industriale
Compressore di Marca:
Sanyo
Range di temperatura:
5 ~ 35 gradi
Serbatoio di acqua:
65L
Condensatore di Tipo:
Shell-e-tubo del Condensatore
Di Alimentazione:
3 PH-380 V/415 V/440 V/460 V/480 V-50 HZ /60 HZ
Stile evaporatore:
Piastra in Acciaio Inox Hest Scambiatore
Capacità di raffreddamento:
11324 WATT
Filtro:
Americano Emerson
Capacità di fornitura
Capacità di fornitura:
100 Set/Sets per Month
Confezionamento & Consegna
Pacchetto
Pacchetto:
1. Multiple imballaggio: Dimostrato da prove di resistenza alla compressione, di lancio. E altamente protetto.
2. cassa del compensato di imballaggio: Ad Alta resistenza di resistenza allo scoppio, anello frantumazione forza e resistenza allo strappo.
3. struttura in legno di parcheggio: Umido-dimostrato e ad alta resistenza resistenza allo scoppio e anello crush resistenza.
Orificio
ShenZhen
Tempi di consegna: :
Quantità(insiemi) 1 - 3 >3
Tempo previsto (giorni) 10 Da negoziare
Product Description

Hot product industry chiller water cooled chiller and air cooled chiller

Product Application

1.The chiller widely used in many industries like plastic and rubber manufacturing, injection industry, Machinery, electronic components, etc.

2.The chiller is with Sanyo compressor. The cooling capacity is good

3.It can be placed directly at working site to avoid the cooling loss caused by far distance;

4.small size, high efficiency and easy cleaning & maintenance;

5.Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.

Modle
FSC-5W

Cooling capacity
W
11324
kcal/h
38650

Compressor Motor
KW
3.3
HP
4.5
Refrigerant Type
R22/R407/R134/R410
Condensor Water Flow Rate
58 L/Min
Control mode
PLC control Automatic, BangPu touching screen
Pipe Diameter
MM(INCH)
25(1'')
Voltage(Standard)
Phase
380v/50Hz/3PHASE (Stander)

Power Consumption
KW
0.37
HP
1/2
Water Tank Capacity
Liter
65
Water Pump Flux
L/Min
50-100
Running Current
AMP
7


Outside size
L(mm)
865
W(mm)
530
H(mm)
1010
Weight
kg
125
Main Features

The water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles. Hence maximizes productivity of plastic molding manufacturing.

1).Famous brand new compressors, high efficient shell condensers and evaporators-excellent cooling, quiet with low electric consumption.


2).P.I.D. Microprocessor control-easy to operate, accurately maintains temperature range from 3℃ to 50℃.


3).Special open type reservoir tank with stainless steel-easy to clean and maintain.


4).Well designed and reasonable pipelines-ensures power supply and saves energy.


5).Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system-safe and durable.


6).Liquid crystal display showing temperatures of outlet and inlet chill water-provides visualized and direct setting.


7).Single, double or quadruple compressors combination available--economical and efficient.


8).Industrial designed-elegant and ergonomic.

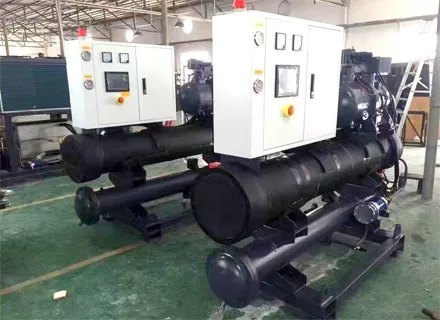

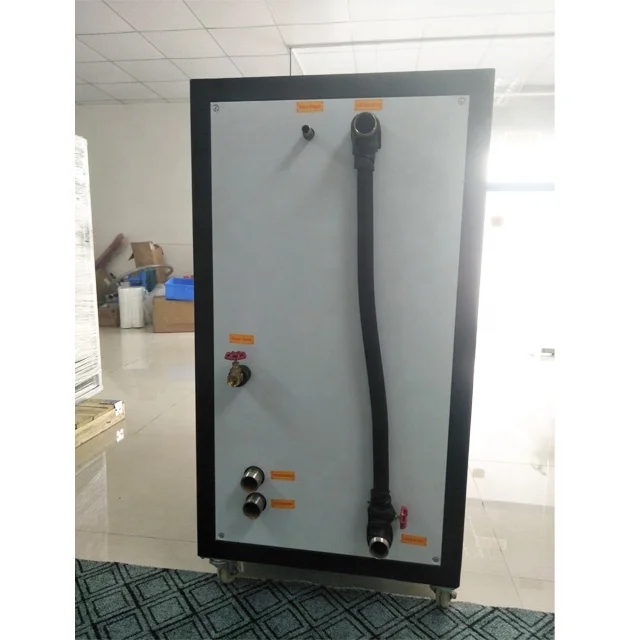

Product Shows

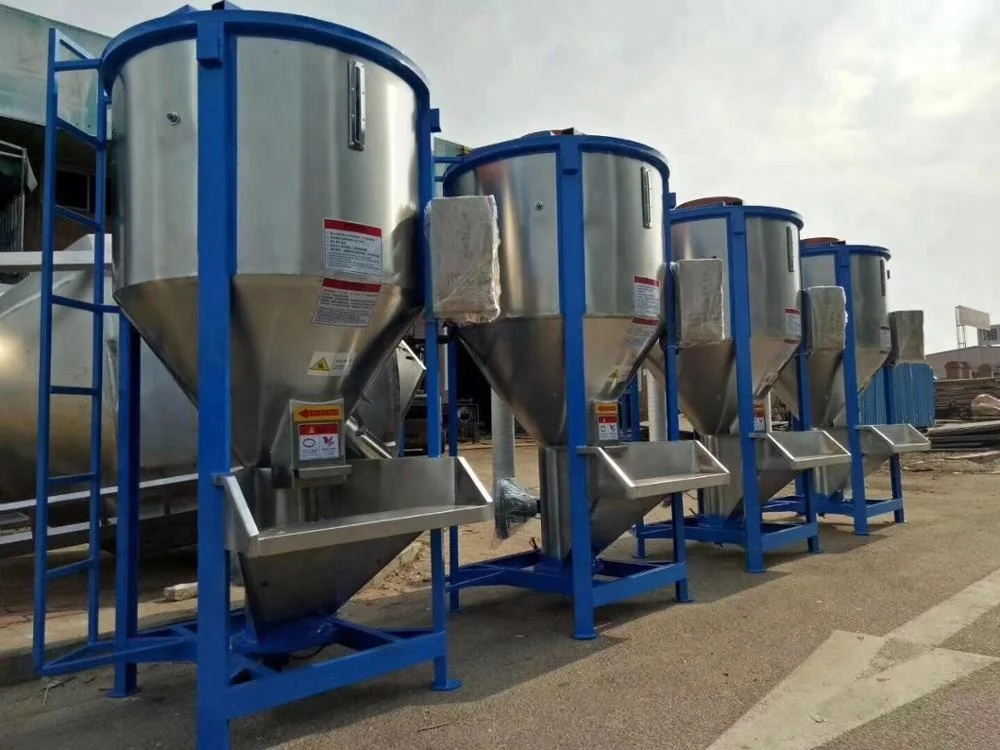

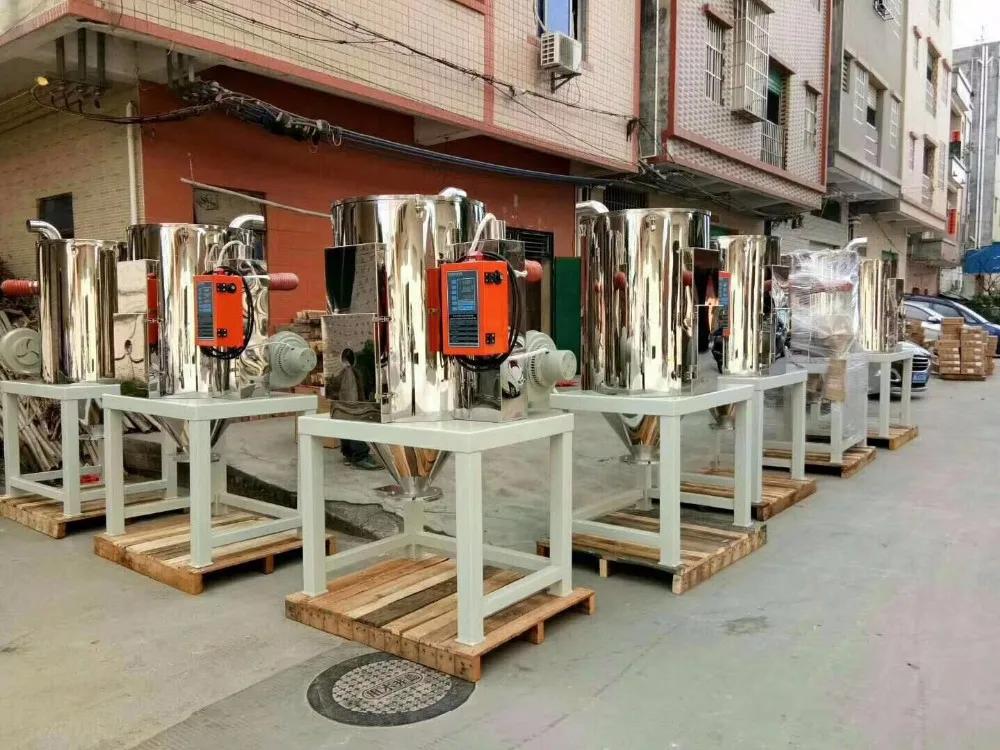

Factory Shows
Our Company

Dongguan Dingyuan Industrial Co...Ltd is established in 1993, located in Dongguan Guangdang. It is a pro-fessional manufacturer of produce chiller, dehumidifier and other auxiliary machines, show the world a high technological enterprice combining construction budget, technical consultation, product design, manu-facturing and debugging service. There are 9 series, over 130 kinds of products covering the whole cooling system series and many auxiliary series products. Widely serve the plastic, electroplating, laser, chemical, packaging, pharmaceutical and other industries.

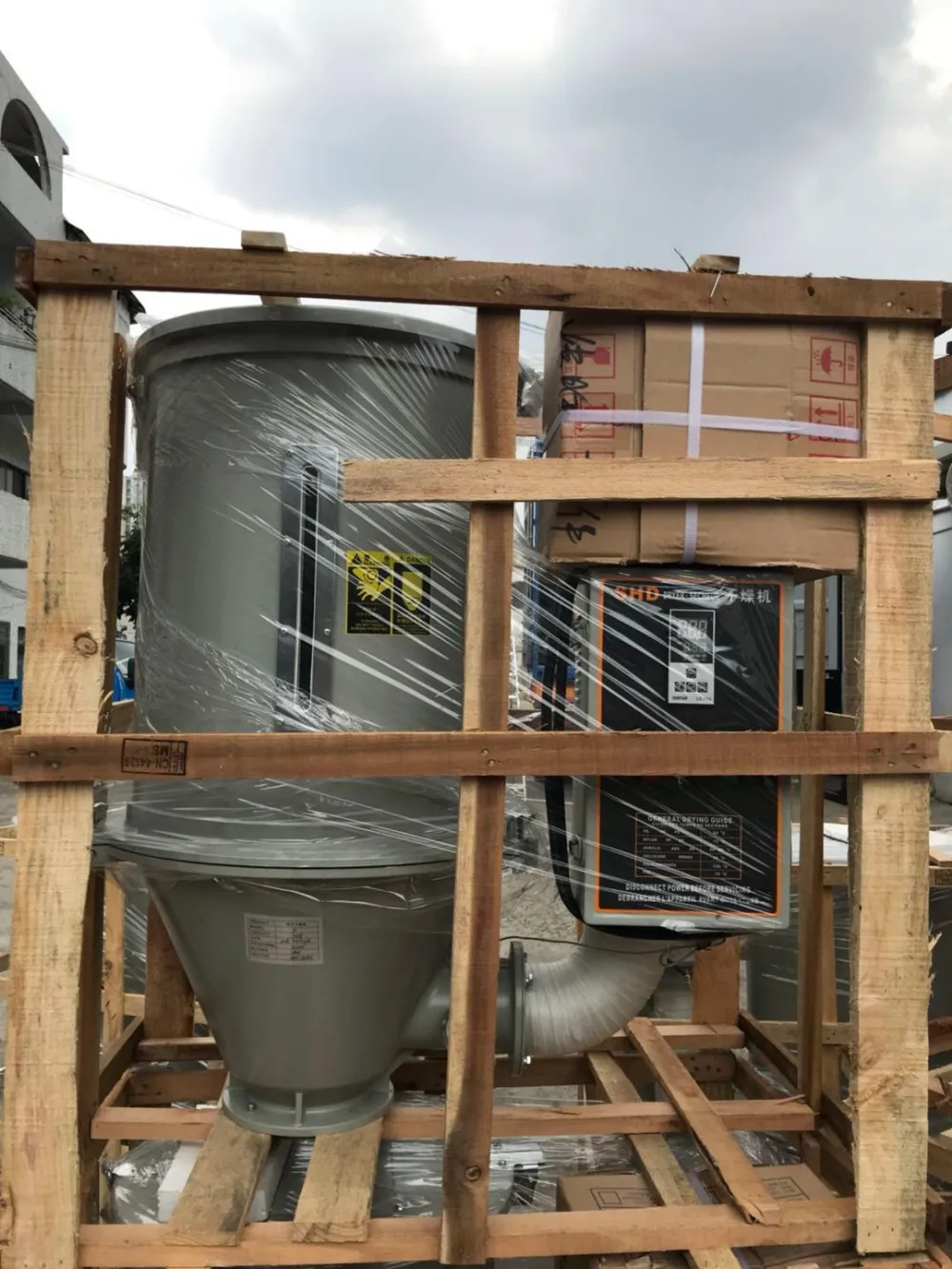

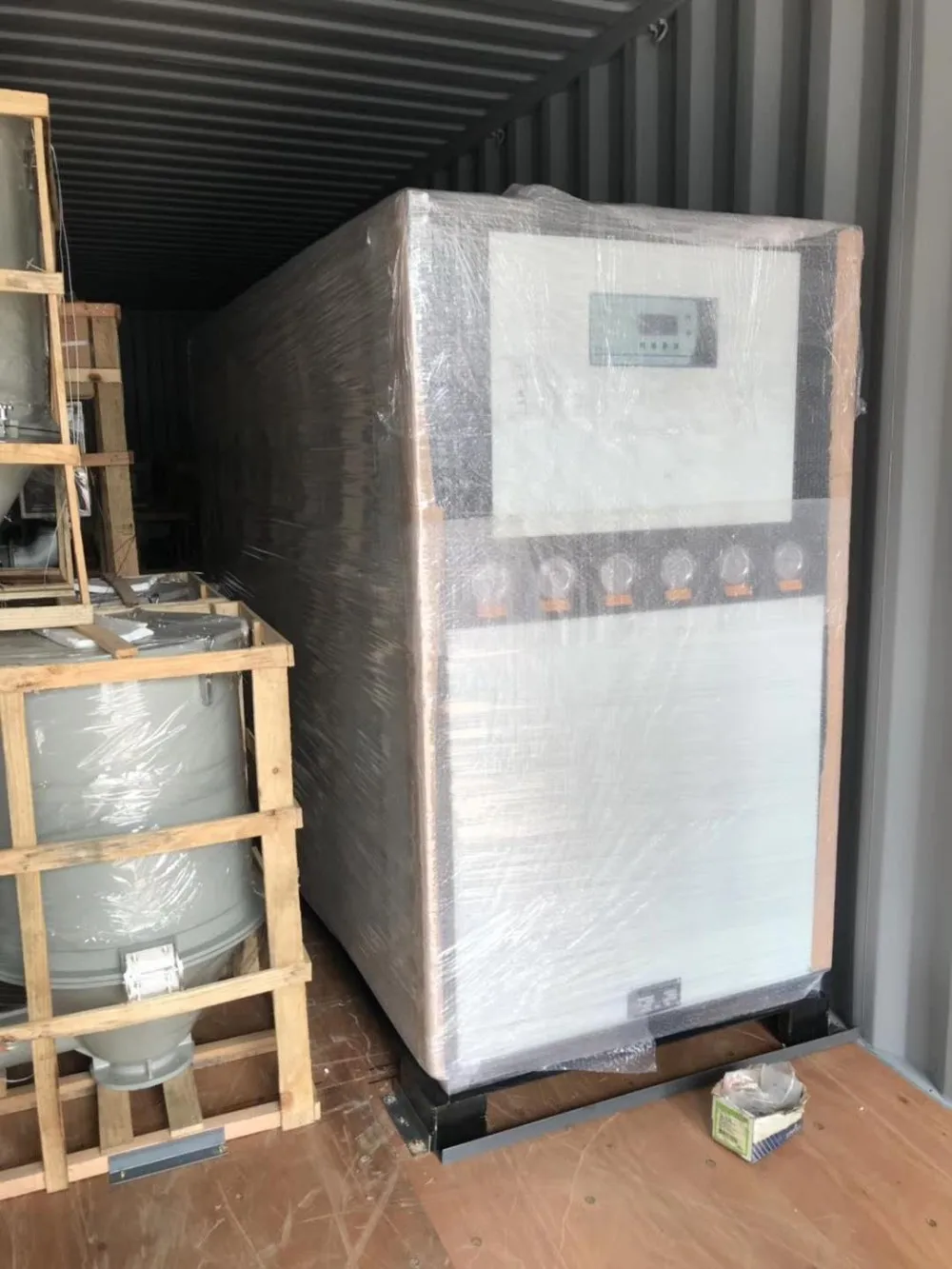

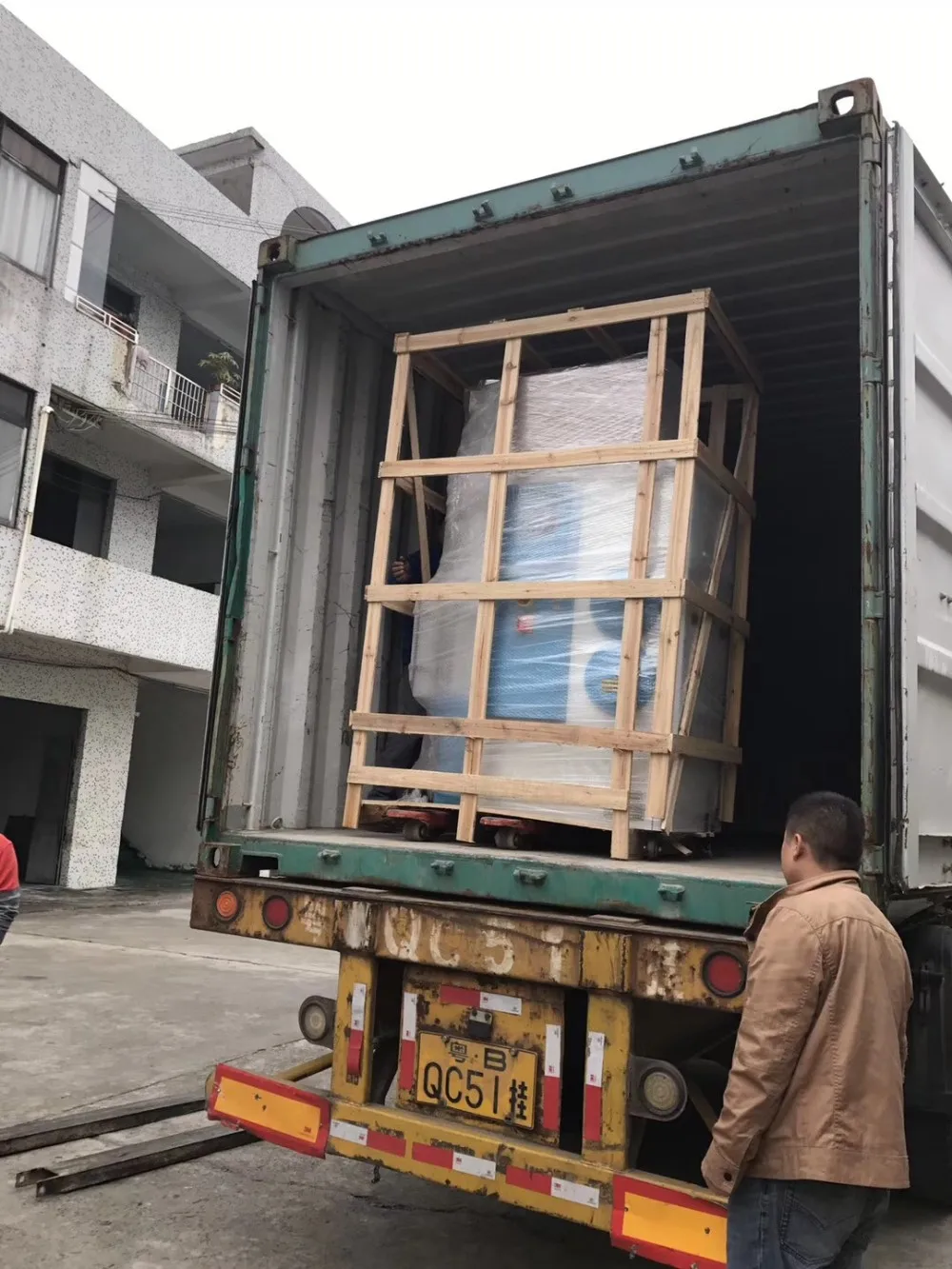

Packing&Delivery

Package:


1. Multiple packing:
proved by tests of the compression resistance, throwing. And highly secured.

2. Plywood case packing: High resistance of burst strength, ring crushing strength and tearing strength.

3. Wooden frame parking: Damp-proved and high resistance burst strength and ring crush strength.
