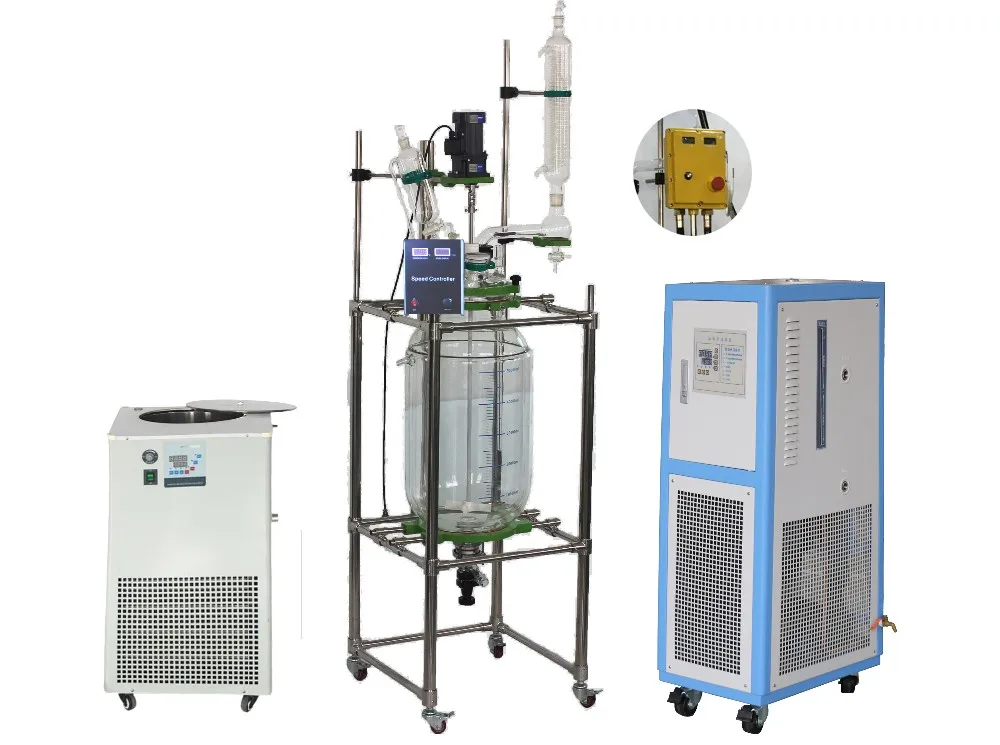

50L di vetro reattore chimico

FOB Prezzo di riferimento:Ottieni l'ultimo prezzo
599,00 USD - 2.999,00 USD / Parte | 1 Parte/parti (Ordine minimo)
rapporto di Attività Sospette
Dettagli in breve
Grado automatico:
Reattore di vetro, Reazione Bollitore
Punto d'origine:
Shanghai, China (Mainland)
Numero del Modello:
220 V/50 HZ
Potere (W):
120 W
Dimensione (L*W*H):
1580*730*790 millimetri
150 KG
304 Staffa In Acciaio Inox
Materiale di vetro:
Boro 3.3
Materiale di tenuta:
Velocità di rotazione (rpm):
0 ~ 600 (personalizzabile)
Collo no. sul coperchio:
Temperatura di funzionamento:
-60 ~ + 200 °C
Servizio After-sales fornito:
Costruisce disponibile per assistere il macchinario oltremare
1 anno
Capacità di fornitura
Capacità di fornitura:
100 Piece/Pieces per Month
Confezionamento & Consegna

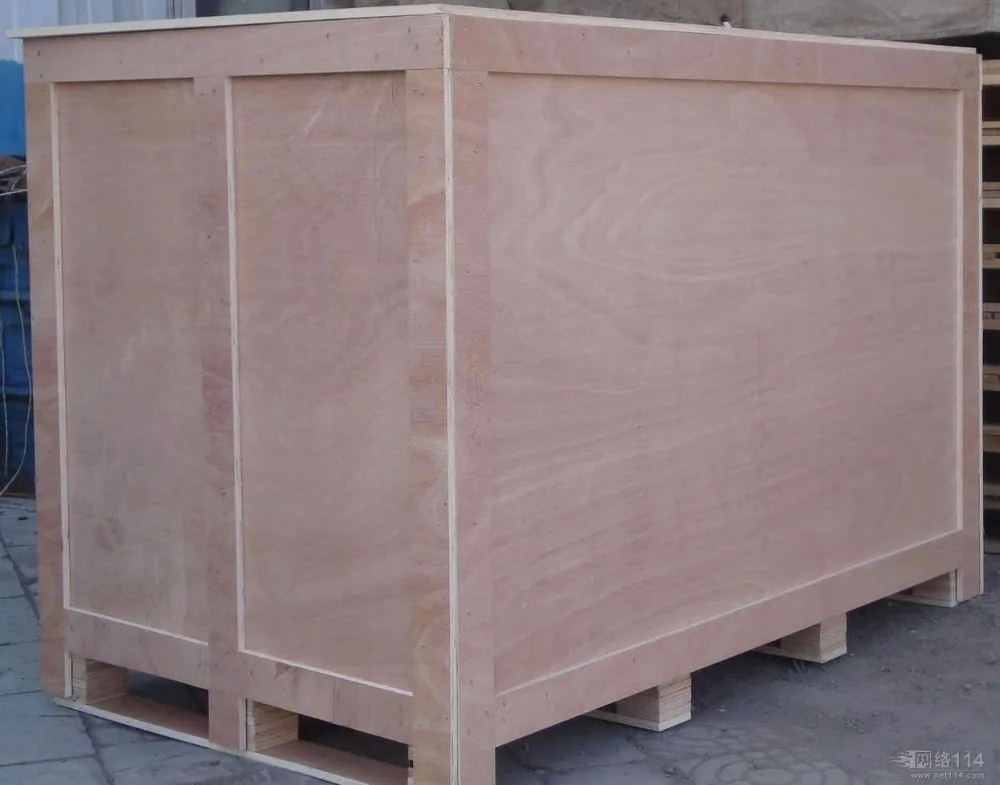

Cassa di legno per l'esportazione
Tempi di consegna: :
Product Description
Detailed Images

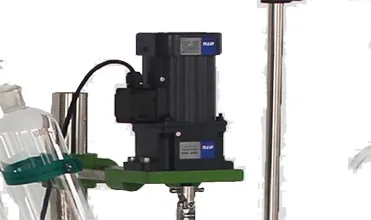

220V /110v copper wire motor

High efficiency, high stability and safer

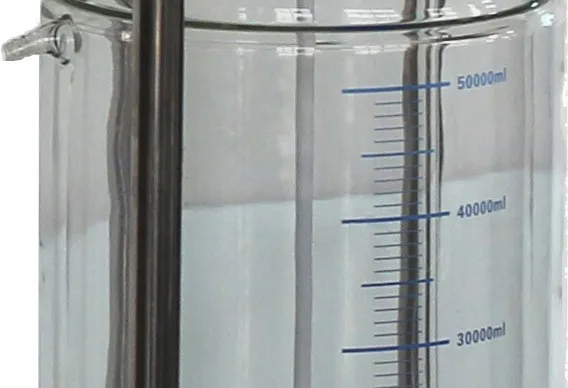

High borosilicate glass (GG17) has excellent physical and chemical properties.It can be used at high temperature from 200℃ to low temperature -80 ℃.

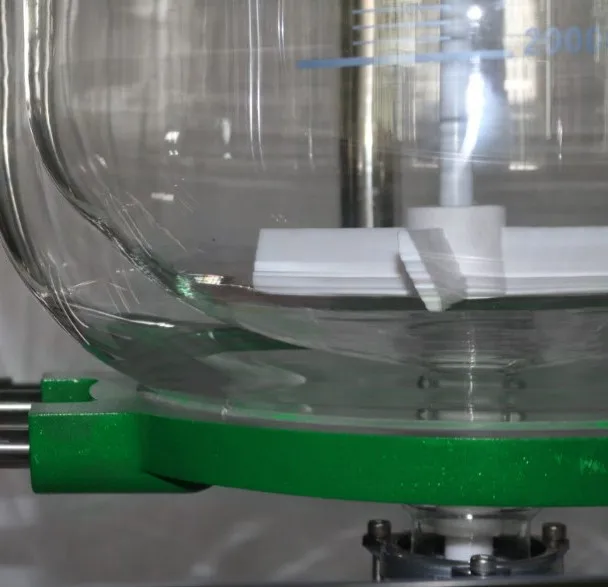

The glass reactor has a double layer, which provides the heat and coolant in the middle of the interlayer. Three layers of kettle body, the first layer for vacuum intercalated tank body for insulation, the second layer for heating and cooling to meet the reaction. All transparent reaction bottles can make the reaction process clear at a glance.

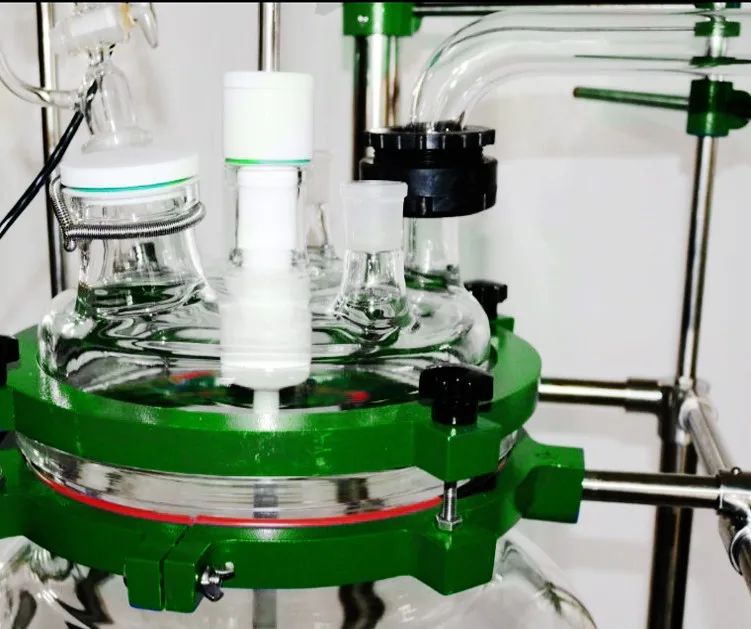

Polytetrafluoroethylene (PTFE) form a seal, special design, can maintain similar products in the market the best vacuum (about -0.098mpa), the discharge valve can release pus and trace the solid material, the leading domestic.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Traced + propelled stainless steel rod, outsourced tetrafluoro

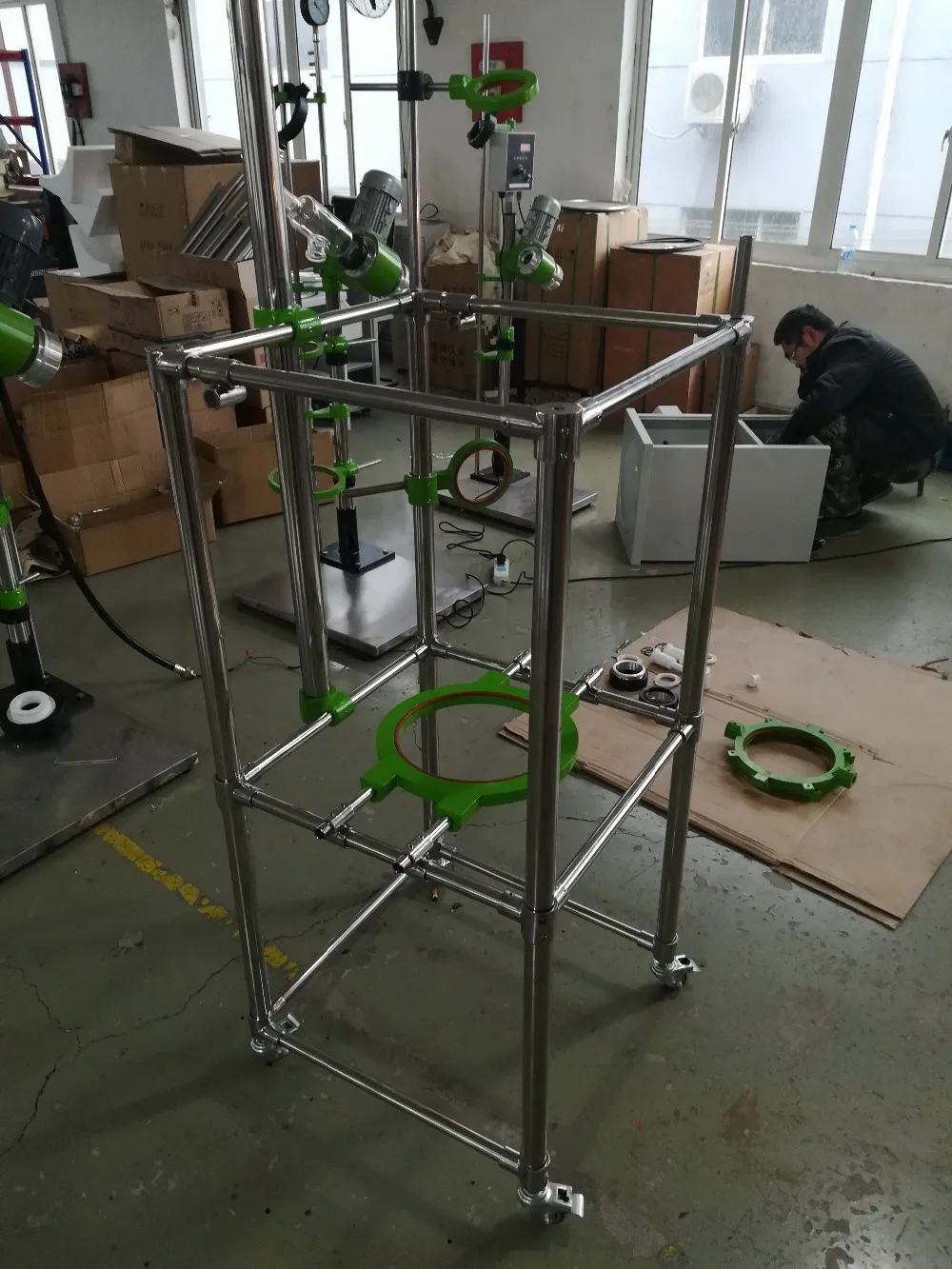

Stainless steel main frame
Double bearing of steel ball, free direction transformation
Brakes with unit

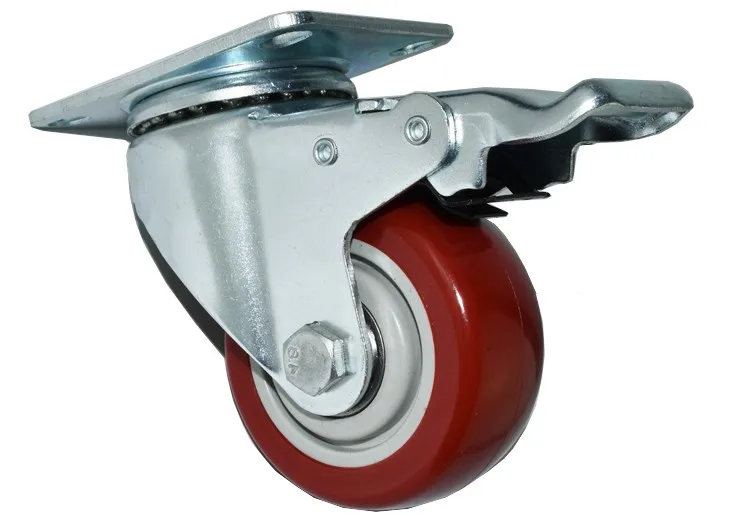

Polyurethane wheel, wear-resistant and mute

The unique equipment of this product is designed for the overweight of users in the actual trial. The whole stainless steel frame structure (its connection parts are three links, four links and smart connections), compact, solid and mobile, convenient to move.

Glass material
Frame material
SS304 Stainless steel
Pipe material material
SS304 stainless steel
Mobile mode
Belt brake type universal wheel angle
Volume of reaction bottle
Intercalation capacity
Flange type inlet and outlet inlet
Low intake and high
Cauldron bottle number
Discharge port from the ground
Reaction temperature of cauldron
-80-250 degree
vacuum degree
Agitation speed
Shaft diameter
Stirring power
Voltage / frequency (V/Hz)
Shape size (mm*mm*mm)
Package size (mm*mm*mm)
1900*700*870 1.16 party
Packing weight (KG)

Speed regulation mode
Electronic speed regulation
Motor configuration
Low speed increase force motor, speed ratio 3:1
Speed display mode
LCD digital display
Temperature display mode
Digital display of PT100 sensor
Sealing method
The component of the 60 flange PTFE seal, stirring port
Reflux (distillation) device
Reflux elbow matching switch, 50# ball mill
Dropping device
2 liter constant pressure funnel 40# mark
Pressure relief device
34# standard pressure relief valve
Thermometer tube
24# mark
Solid feed
Of 80 flange cover with PTFE
Feeding mode
Oblique discharge type glass discharge valve, flange of 80
Vacuum display mode
Vacuum meter
Agitation method

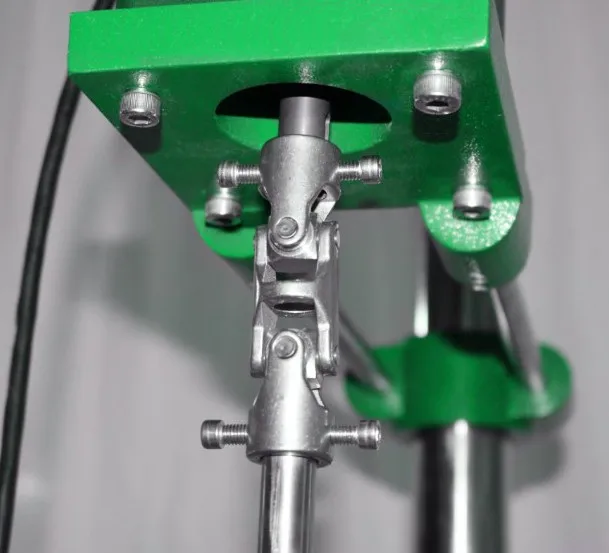

Joint of universal joints
The stirring rod
Traced + propelled stainless steel rod, outsourced tetrafluoro

Optional to configure

Collection device
Collecting bottles
Explosion-proof inverter and explosion-proof motor EX370W 0-1400 turn
Thermal insulation device
Thermal insulation cotton
Sealing part
Ceramic bearing and mechanical seal
The horizontal condenser can reduce the overall height
Packing & Delivery

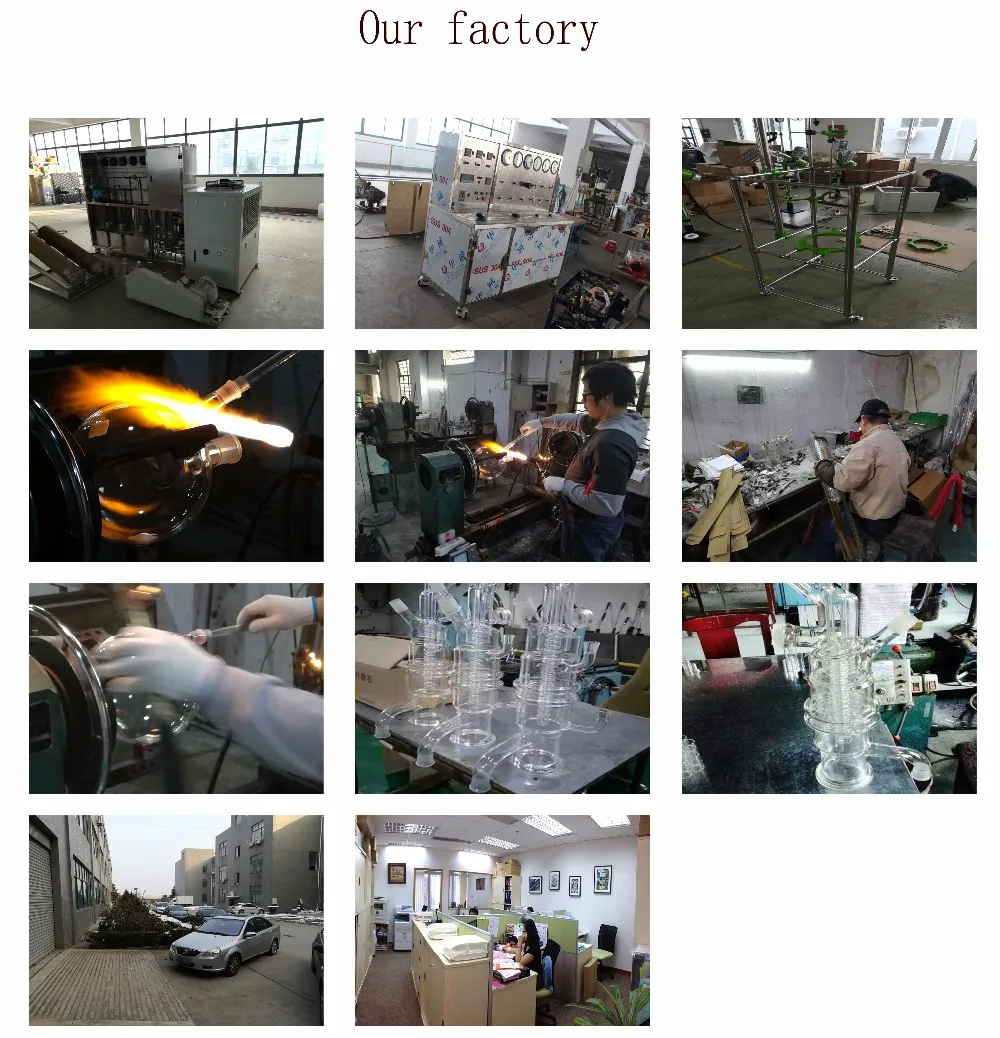

Our Company

Can you provide OEM service?
Yes, we can provide a glass custom service.

How do you pay and deliver?
Orders less than 8000 dollars, 100%, T/T, more than 8000 US dollars to pay 60% we produce, after the completion of the completion of the end of the payment we shipped.

Glass is fragile, and how to break it?
Glass device after professional packaging, will not be bad, please be assured of the purchase

After-sales service?
We can provide one year after sale service for all our goods, (excluding glass and wastage).
