Prezzo di fabbrica Impiallacciatura Colla Rullo Spalmatore Macchina

FOB Prezzo di riferimento:Ottieni l'ultimo prezzo
3.000,00 USD - 15.000,00 USD / Insieme | 1 Insieme/insiemi (Ordine minimo)
Tipo:
Altri
Numero del Modello:
Tempi di consegna::
Quantità(insiemi) 1 - 1 >1
Tempo previsto (giorni) 40 Negoziabile
rapporto di Attività Sospette
Panoramica
Dettagli in breve
Circostanza:
Nuovo
Punto d'origine:
Shandong, China
Marca:
HANVY
Tensione:
380 V/220 V
Potere (W):
0.75KW
Dimensione (L*W*H):
4110x3200x1600mm
Peso:
4300 KG
Certificazione:
ISO9001
Garanzia:
1 anno
Servizio After-sales fornito:
Video di supporto tecnico
Nome:
Prezzo di fabbrica Impiallacciatura Colla Rullo Spalmatore Macchina
Rivestimento rullo dia.:
430 millimetri
Disegno tecnico:
Tipo Z
Spremere rullo dia.:
292 millimetri
Max. spessore di lavoro:
30 millimetri
Confezionamento & Consegna
Pacchetto
Restringimento film + compensato pallet
Orificio
Qingdao,China
Tempi di consegna: :
Quantità(insiemi) 1 - 1 >1
Tempo previsto (giorni) 40 Da negoziare
Descrizione del video
Product Description

Product Application

Factory Price Veneer Glue Roller Spreader Machine

Hanvy Machinery,is the original manufacturer for glue spreader machine for plywood.

The glue spreader is used to spray the adhesive on the veneer surface averagely.

The glue spreader rollers' layout is zigzag which can save glue,and the larger roller ensure good perfromance and to make high quality plywood.
And we could design a complete gluing line according to plant size.

Two types:

OLD type-Parallel rollers,with glue tray underneath;

NEW type-Cross rollers "Z" type,save glue.

Factory Price Veneer Glue Roller Spreader Machine

Features:
1.Two rubber rollers and two polishing steel rollers,"Z" type layout
2.Newdesinged structure,more steady perfromance,spray gule even and save glue
3.With automatic feeding out conveyor

Model
MH62
MH61
Coating roller Diameter x Length
Φ430x2700 mm
Φ430x1500 mm
Squeeze roller Diameter x Length
Φ292x2700 mm
Φ292x1500 mm
Max. working thickness
30 mm
30 mm
Coating roller speed
30/ 45 m/min
30/ 45 m/min
Main drive motor
4/5.5 kw
4/5.5 kw
Outlet conveyor motor
0.75 kw
0.75 kw
Roller table size
3050x1520 mm
1450x1800 mm
Main body size
4110x3200x1600 mm
2910x2978x1600 mm
Weight
4300 kg
3290 kg

Main Features

Factory Price Veneer Glue Roller Spreader Machine
The glue spreader is used to spray the adhesive on the veneer surface averagely.
1.Glue saving: roller all under professional precision treatment and balance revised . And it will make the spray more even.
2.Convenience: the special adjusting mechanism of rubber and doctor roller with pneumatic cylinder . When matching frequency controller glue density cam be adjusted and speed-changed efficiently under different operation demands.
3. Safety: due to up&down roller were allocated pneumatic cylinder. So it can leap vacant to reduced the damage to glue spray roller.

Factory Price Veneer Glue Roller Spreader Machine

Usually ,our veneer glue spreader will match three hydraulic scissors,some ground roller and roller drive conveyor.4-5 workers are enough.

1) Iron steel machine body,so strong and relialble
2) High gluing speed to improve
3) Zigzag rollers' layout
4) Gluing roller is made of natural rubber.
5) Gear drive

Detailed Images

Factory Price Veneer Glue Roller Spreader Machine

For old type of glue spreader machine for plywood,

total 5 hand wheel for locking and adjusting rubber roller opening.

For new Z type of glue spreader machine,two hand wheels at front and two at back side.

Factory Price Veneer Glue Roller Spreader Machine

Equipped with output conveyor,high working efficiency.

one main drive motor,5.5kw
one outlet conveyor motor,0.75kw
and anther reducer


Factory Price Veneer Glue Roller Spreader Machine

Precise gear drive system,high quality and better working performance.

All gears and drive components are phosphorization treated,resistant to corrosion

Factory Price Veneer Glue Roller Spreader Machine

High quality rubber rollers,diameter 430mm;

steel roller diameter 292mm.

Made of natural rubber(NBR),full of slight grooves on rollers,so that make glue even on the veneer.

Factory Price Veneer Glue Roller Spreader Machine

This is the old type of glue spreader machine for plywood,with 5 hand wheels for adjustment.

Factory Price Veneer Glue Roller Spreader Machine

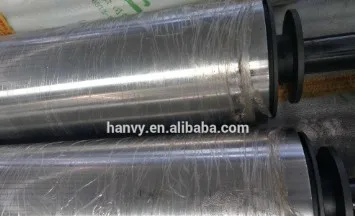

Squeeze rollers

Φ292x2700 mm,two pcs
Made of SS304,zinc coating on the surface is available.
Glue guide slot on double ends.

Production Chart
Certifications
About Us

HANVY Machinery Company information

We have accumulated over 30 years experience, and have successfully made a strong impact in the international markets. Our entire range comprises machines like Log Debarker, Veneer Lathe Peeling Machine, Veneer Dryer, Glue Spreader, Plywood cold press, Hot Press Machine, Plywood D.D Saw , Log Home Machinery, and Log / Timber Saws and Moulders.

HANVY Machinery Booth

Hanvy Machinery has attended the exhibition WOODEX
15th International exhibition of equipment and technologies for woodworking and furniture production
Mosco, Russia.

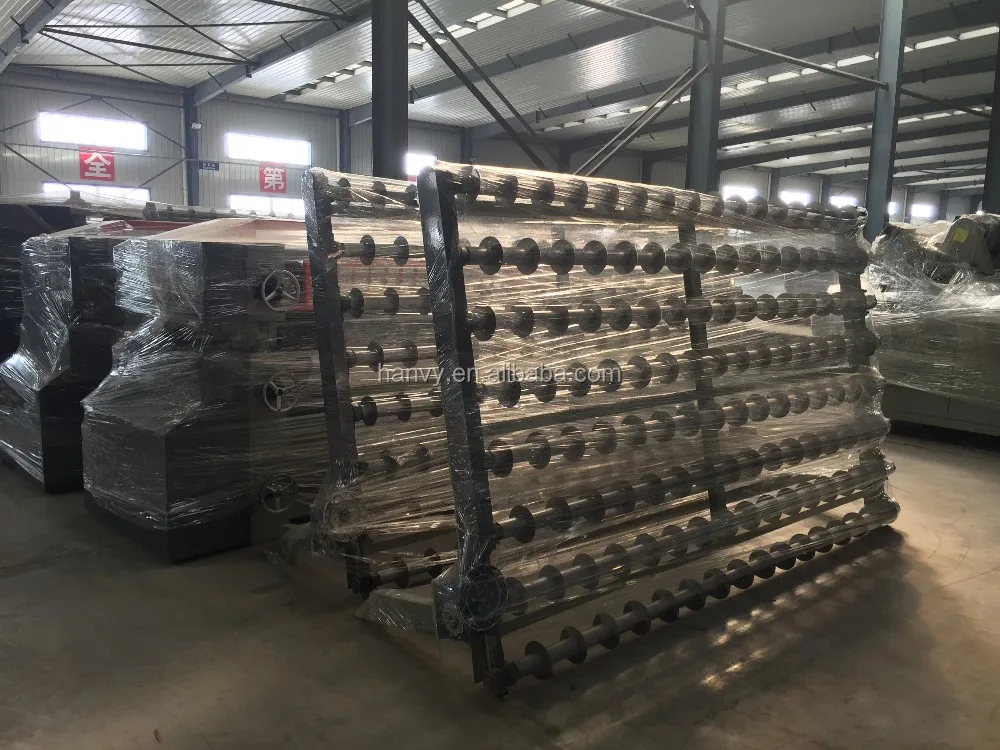

Packing & Delivery
Packaging
Size
20ft
Weight
4300kg



Packaging Details
Shrinkage film for overall,small sapre parts are packed in plywood box.
Underneath with plywood pallet for forklift transportation.
